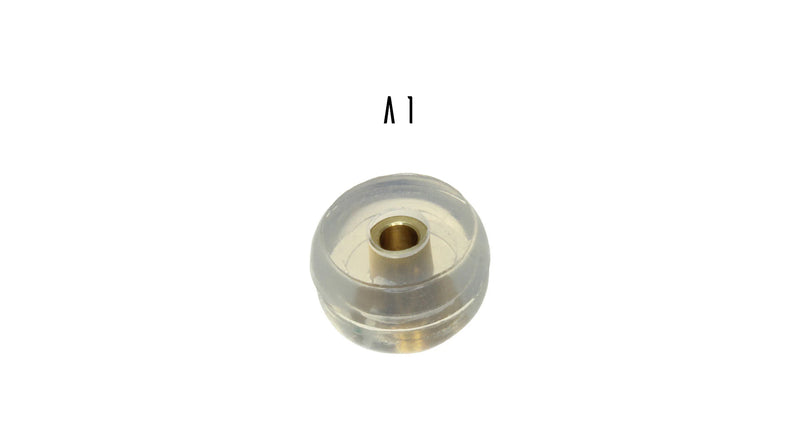

Alpha Gel αGEL Vibration Damping Bush-Type A-1

$459.51

What is αGEL?

These anti-vibration bushings are secured with screws. They are small, soft, and easily compressible, allowing for effective control of micro-vibrations.

Bush-Type

  • Product Type: A-1 Bush Type (Gel Bush)
  • Optimum Min. Load: 0.5kg (at 4 points)
  • Optimum Max. Load: 2kg (at 4 points)
  • Recommended Frequency Range: 50(Hz)
  • Collar (Inner diameter): φ3mm

Characteristics

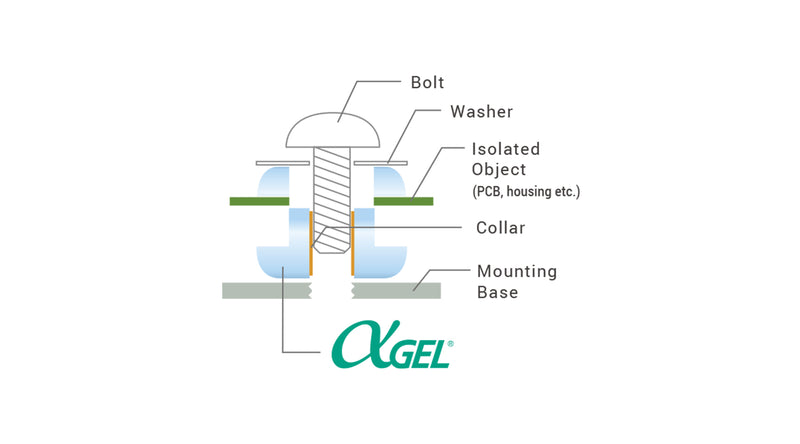

  • Effective for minimizing horizontal drift, using a bolt running through the Gel Bushing.
  • Designed to dampen tiny to light loads and micro vibrations.

Notes

  • Since this product is very soft and easily damaged, please handle with care.
  • Tighten the bolt all the way to the collar.
  • Usable bolts are M3 or smaller for Type-A
  • Use a washer equal to or bigger than the diameter of the upper portion of GEL Bush.
  • Collar inside the GEL Bush is removable.

Download

αGEL Datasheet
